Die Spraying

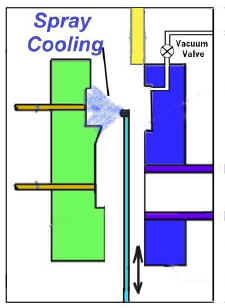

Spray Cooling of Die Faces

Dies are also cooled between shots by spraying cooling solutions on the faces of the dies.

  • These solutions also act as lubricants for casting separation and ejection.

Spray cooling of the die faces is an economical approach for thermal management for this fan component.
