Final Design of the Dies

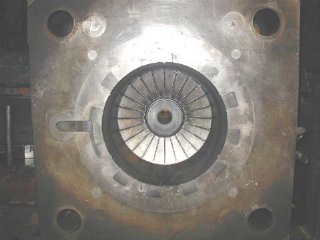

Ejector/Moving Half of the Die

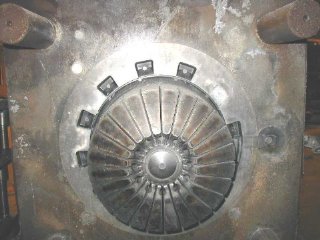

Cover/Stationary Half of the Die

The fan housing is cast in a 3 plate die with a cold chamber gating system.

The photos above show the two die halves -- the cover half and the ejector half.

The casting dies for the housing were fabricated from premium grade H-13 tool steel.
